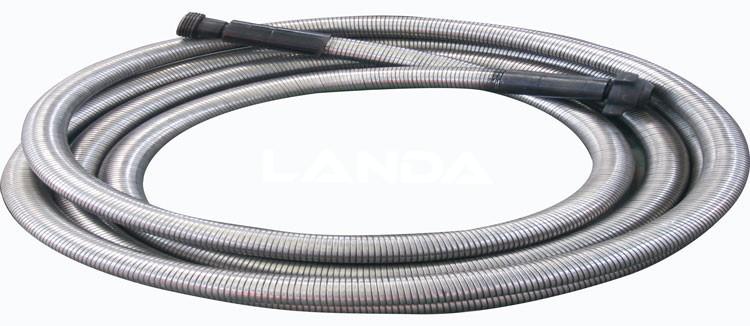

BOP Hose
Wellhead & Well Control Equipment
well control, wellhead, blow-out prevention
BOP hoses (BOP hydraulic control lines) used for blow-out prevention systems are manufactured with superior components to operate withstand tough crisis oilfield conditions.
Features
Working temperature: -20℃～+121℃.
Structure: A structure of lining, reinforcement, flame-retardant and thermal insulaiton layer and protection cover with coupling patent design, patent No.: ZL00214874.9.
Property: Under temperature of 1093℃(2000℉), the product can perform well for more than 5 minutes under working pressure. The product is successfully approved as the National Torch Plan project in 2002 by State Science and Technology Committee considering its advanced technology and strong practicability.
Standard: API Spec 16D
Blowout preventer hoses supplied by Finemade are ideally suited for high pressure hydraulic applications for drilling well control equipment.
Technical Data
| Hose ID | Hose O.D. | Working Pressure | Min. Bend Radius | Weight | Max. Hose Length | ||||||
| (In.) | (mm) | (In.) | (mm) | (psi) | (MPa) | (In.) | (mm) | kg/m | lb/ft | ft | m |
| 1/4 | 6 | 0.77 | 20 | 5000 | 35 | 4 | 102 | 0.66 | 0.37 | 330 | 100 |
| 3/8 | 10 | 0.93 | 24 | 5000 | 35 | 5 | 127 | 0.77 | 0.52 | 330 | 100 |
| 1/2 | 13 | 1.05 | 27 | 5000 | 35 | 7 | 178 | 0.98 | 0.63 | 330 | 100 |
| 3/4 | 19 | 1.38 | 35 | 5000 | 35 | 9.5 | 241 | 1.64 | 1.05 | 200 | 60 |
| 1 | 25 | 1.67 | 42 | 5000 | 35 | 12 | 305 | 2.62 | 1.77 | 200 | 60 |
| 1 1/4 | 32 | 2.11 | 54 | 5000 | 35 | 16.5 | 419 | 3.94 | 2.67 | 200 | 60 |
| 1 1/2 | 38 | 2.41 | 61 | 5000 | 35 | 20 | 508 | 4.59 | 3 | 200 | 60 |
| 2 | 51 | 2.96 | 75 | 5000 | 35 | 25 | 635 | 8.53 | 5.73 | 200 | 60 |
