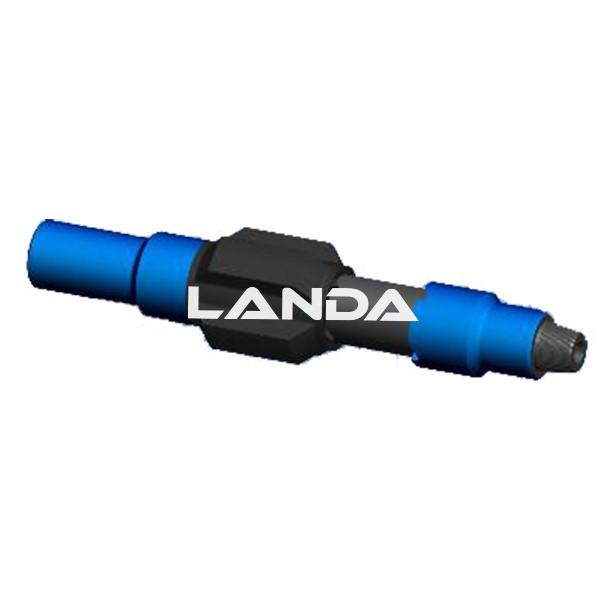

Stabilizer

Drilling Tools

Downhole Drilling Tools, Drill Stem Spiral Blade Near Bit Stabilizer , Drill String Stabilizer AISI4145H, Quality Downhole Drilling Tools

Product Introduction

Stabilizer is an important tool to stabilize the down-hole equipment and prevent deviation in oil and gas drilling. It is manufactured from high strength alloy steel (non-magnet steel optional), and prevents differential sticking of the drill string by stabilizing the BHA and keeping drill collars and drill pipes away from the borehole wall. In that case, the deviation rate and azimuth change rate will follow the drilling plan, that can avoid “dog leg” from happening. Stabilizers can also increase the drilling speed and reduce the drilling cost.

Features

•Permit increased weight on the bit for increased penetration without the deviation problems associated with high weight on the bit

•Decrease buckling and bending problems due to increased weight on the bit

•Reduce drill collar friction and torsional fatigue

•Ensure maximum circulation by milling the fluid passageways between the stabilizer blades to neck size, which retains a safe margin of strength and excellent fluid passage—the result is superior hydraulics that pays off in maximum bit penetration rates

•Ensure the long-term performance of your stabilizers with carbide-surfaced blades that keep the hole and drill string centered and on track. Cougar places plenty of extra carbide on the leading edge of each blade, where stabilizers typically wear the most.

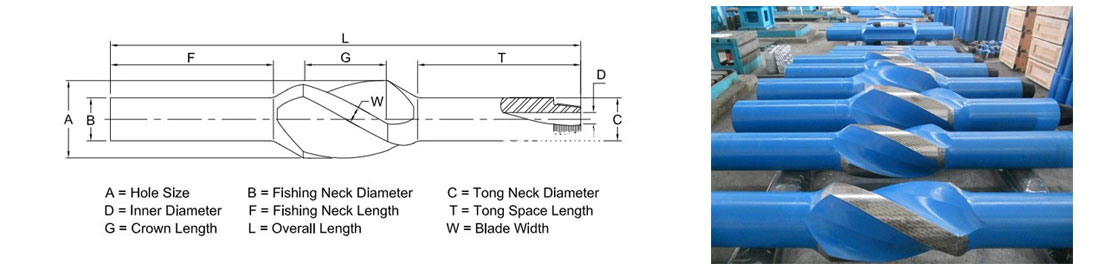

Technical Data

OD stab	Body OD	ID	Fishing neck length	Crown length	Blade taper angle		Overall length	Top connection	Bottom connection
OD stab	Body OD	ID	Fishing neck length	Crown length	Top	Bottom	Overall length	Top connection	Bottom connection
3 3/4''	3 1/8''	1 1/4''	26''	10''	30o	15o	58''	NC 23 B	NC 23 P
3 3/4''	3 1/8''	1 1/4''	26''	10''	30o	15o	58''	NC 23 B	2 3/8 REG B
4 1/2''	3 1/2''	1 1/2''	26''	10''	30o	15o	59''	NC 26 B	NC 26 P
4 1/2''	3 1/2''	1 1/2''	26''	10''	30o	15o	59''	NC 26 B	2 3/8 REG B
5 1/2''	4 3/4''	2''	30''	12''	30o	15o	68''	NC 38 B	NC 38 P
5 1/2''	4 3/4''	2''	30''	12''	30o	15o	68''	NC 38 B	3 1/2 REG B
6''	4 3/4''	2''	30''	12''	30o	15o	69''	NC 38 B	NC 38 P
6''	4 3/4''	2''	30''	12''	30o	15o	69''	NC 38 B	3 1/2 REG B
7 1/2''	6 1/2''	2 13/16''	30''	16''	30o	30o	72''	NC 46 B	NC 46 P
7 1/2''	6 1/2''	2 13/16''	30''	16''	30o	30o	72''	NC 46 B	4 1/2 REG B
7 7/8''	6 1/2''	2 13/16''	30''	16''	30o	30o	72''	NC 46 B	NC 46 P

Non-rotating stabilizer

Non-rotating stabilizer (rubber sleeve stabilizer) is able to avoid blade wear and wall damage during drilling operation. The non-rotating stabilizer consists of mandrel, copper washer, rubber sleeve, spacer sleeve and self-locking lower sub.

During drilling, the non-rotating stabilizer transfers the torque by means of mandrel. The rubber sleeve is sliding and moving relative to the mandrel and it plays a role in stabilizing the well. A locking clutch (self-locking lower sub) will help to avoid sleeve rotation during washover operation.

Technical data – Non-rotating stabilizer

Sleeve			Mandrel			overall Length （mm）	Product Code
Length (mm)	O.D. (mm)	Blade Qty	I.D. (mm)	Fishing O.D. (mm)	Connection	overall Length （mm）	Product Code
380	Φ155	4	Φ44	Φ121	NC38	1638	W0900301
380	Φ157	4	Φ44	Φ127	NC38	1638	W0900401
500	Φ214	4	Φ71	Φ165	NC50	2013	W0901001
500	Φ220	4	Φ71	Φ165	NC50	2013	W0901201
500	Φ255	4	Φ71	Φ165	NC50	2013	W0901601
500	Φ304	4	Φ76	Φ203	6 5/8 REG	2000	W0902001
500	Φ310	4	Φ76	Φ203	6 5/8 REG	2000	W0902101
500	Φ313	4	Φ71	Φ165	NC50	2013	W0902103
500	Φ371	4	Φ71	Φ197	6 5/8 REG	2013	W0902201
500	Φ374	4	Φ71	Φ203	6 5/8 REG	2013	W0902203
520	Φ405	4	Φ76	Φ241	7 5/8 REG	2045	W0902301
520	Φ430	4	Φ76	Φ241	7 5/8 REG	2045	W0902401
520	Φ444	4	Φ76	Φ241	7 5/8 REG	2045	W0902501
600	Φ558	4	Φ76	Φ241	7 5/8 REG	2130	W0902701
690	Φ711	5	Φ76	Φ241	7 5/8 REG	2210	W0903401

Technical data - Integral Blade Stabilizer

Max. pressure drop		Working torque		Max. torque		Output power		Working WOB		Max. bit weight		Weight		Length		Max.tosrtqaureting
psi	Mpa	lb.ft	N.m	lb.ft	N.m	bhp	kW	kb	kN	lb	kN	lb	kg	ft	m	kN.m
492	3.39	48	66	68	93	5	4	660	3	1320	6	49	22	7.81	2.38	16
492	3.39	103	140	146	198	11	8	880	3	1760	6	49	34	7.81	2.83	16
492	3.39	184	250	260	353	16	12	1100	4	2200	8	75	65	9.28	3.6	35
492	3.39	282	382	398	540	28	21	2640	5	4400	10	143	84	11.81	3.6	62
656	4.52	280	380	396	537	27	20	2640	12	4400	20	185	98	11.81	4.2	95
656	4.52	432	585	610	827	38	28	3520	12	5500	25	216	116	13.78	4.2	95
656	4.52	561	760	792	1074	38	28	3520	16	5500	25	256	116	13.78	4.2	146
819	5.65	559	758	790	1071	54	40	4400	16	7700	35	256	183	13.78	5	190
492	3.39	696	943	983	1333	32	24	4400	20	7700	35	403	180	16.4	4.9	189
492	3.39	722	979	1020	1383	32	24	4400	20	7700	35	397	180	16.08	4.9	236
819	5.65	1174	1592	1658	2248	76	57	6600	30	12100	55	397	232	16.08	5.38	245
819	5.65	920	1248	1300	1762	76	57	6600	30	12100	55	511	232	17.65	5.38	398
1065	7.35	1196	1622	1690	2291	98	73	6600	30	12100	55	511	275	17.65	6.38	312
1147	7.91	1217	1650	1720	2331	80	59	7700	35	17600	80	606	297	20.93	5.45	406
459	3.16	730	990	1032	1399	38	28	7700	35	17600	80	655	248	17.88	4.55	413
983	6.78	1063	1441	1502	2036	150	112	11000	50	22000	100	547	461	14.93	6.3	248
656	4.52	1708	2315	2412	3270	100	75	11000	50	22000	100	1016	461	20.65	6.3	360
819	5.65	2134	2894	3015	4087	125	93	11000	50	22000	100	1016	531	20.65	7.12	579
656	4.52	2006	2720	2833	3841	100	75	11000	50	22000	100	1171	461	23.36	6.3	723
819	5.65	2508	3400	3542	4802	125	93	11000	50	22000	100	1016	531	20.65	7.12	680
1147	7.91	2538	3440	3584	4859	175	131	11000	50	22000	100	1171	535	23.36	7.2	850
656	4.52	2348	3183	3316	4496	72	54	11000	50	22000	100	1179	461	23.62	6.3	860
819	5.65	3913	5305	5527	7494	179	133	17600	80	35200	160	1016	964	20.65	7.65	796
819	5.65	4696	6366	6633	8992	179	133	17600	80	35200	160	2125	964	25.1	7.65	1326
819	5.65	3913	5305	5527	7494	179	133	17600	80	35200	160	2125	1055	25.1	7.65	1592
819	5.65	4696	6366	6633	8992	179	133	17600	80	35200	160	2326	1055	25.1	7.65	1326
1311	9.04	3757	5093	5306	7194	344	257	22000	100	37400	170	2326	1315	25.1	9.9	1592
1147	7.91	5976	8102	8442	11445	301	224	22000	100	37400	170	2899	1273	32.48	9.22	1273
819	5.65	5123	6946	7236	9811	215	160	22000	100	37400	170	2806	1105	30.25	8.32	2026
983	6.78	6148	8335	8684	11773	258	192	22000	100	37400	170	2436	1273	27.3	9.22	1736
819	5.65	6261	8488	8844	11990	215	160	22000	100	37400	170	2806	1105	30.25	8.32	2084
983	6.78	7513	10186	10612	14388	258	192	22000	100	37400	170	2436	1273	27.3	9.22	2122
934	6.44	7933	10756	11206	15192	245	183	22000	100	37400	170	2806	1315	30.25	9.9	2546
1229	8.48	7727	10476	10914	14797	322	240	22000	100	37400	170	2899	1315	32.48	9.9	2689
819	5.65	6367	8633	8994	12193	215	160	37400	170	55000	250	2899	1648	32.48	8.37	2619
656	4.52	7074	9590	9991	13546	258	193	37400	170	55000	250	3633	1648	27.46	8.37	2158
819	5.65	7142	9683	10088	13677	233	174	37400	170	55000	250	3633	1648	27.46	8.37	2398
819	5.65	9391	12732	13265	17985	323	241	39600	180	66000	300	3633	1648	27.46	8.5	2421
819	5.65	7504	10173	10599	14370	323	241	39600	180	66000	300	3633	1928	27.89	8.5	3183
819	5.65	9391	12732	13265	17985	323	241	39600	180	66000	300	4251	1928	27.89	8.5	2543
983	6.78	9867	13377	13937	18895	516	385	48400	220	79200	330	4251	3020	27.89	10.7	3183
656	4.52	9294	12600	13127	17797	344	257	48400	220	79200	330	6658	2457	35.1	8.7	3344
983	6.78	13941	18900	19691	26696	516	385	48400	220	79200	330	5417	3020	28.54	10.7	3150
656	4.52	12954	17562	18297	24806	344	257	48400	220	79200	330	6658	2457	35.1	8.7	4725
819	5.65	13044	17684	18424	24978	430	321	48400	220	79200	330	5417	2757	28.54	9.7	4390
983	6.78	15652	21221	22109	29974	516	385	48400	220	79200	330	6078	3020	31.82	10.7	4421
590	4.07	10751	14576	15186	20589	387	289	66000	300	123750	550	6658	3445	35.1	9.8	5305
