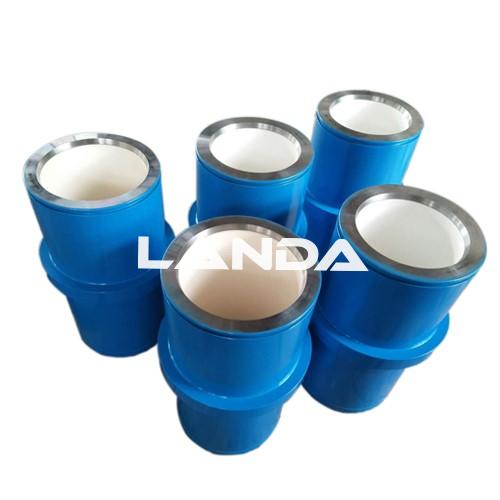

Ceramic Liner & Ceramic Plunger
Pump
Liner/ Plunger
Landa ceramic liners and ceramic plungers are widely used in drilling industry, mining industry, coal industry, steel industry, conveying system and so on. They can effectively protect the pumps from abrasion damage, and reduce the maintenance cost.Materials Zirconium oxide, Yttrium oxide and aluminum oxide are optional to choose for different working conditions.
Features
●Excellent Performance: High corrosion resistant, high temperature resistant, excellent wear resistant.
●Long working life: 4000-10000hours working life, 10+ times longer than Bi-metal liners and metal Plungers.
●Cost decrease: the excellent performance and long working life decrease your maintenance cost, manpower cost, storage cost, transportation cost, etc.

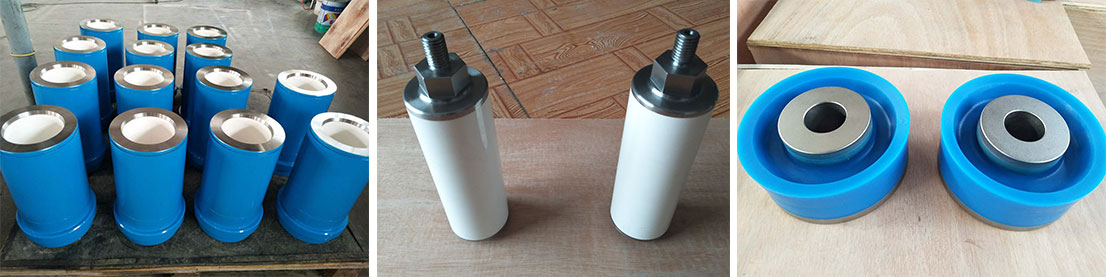

Pistons, valves, valve seats
Special designed Pistons, valves, valve seats have parallel performance and working life to make your pumps keep working for long time.
Main Pumps and Brands to apply (not limited to following list)
| BOMCO | F-500 | F-800/1000 | F-1300/1600 | F-1600HL | F-2200HL |
| LANSHI | 3NB-500 | 3NB-800 | 3NB-1000C | 3NB-1300C | 3NB-1600 |
| HONGHUA | HHF-500 | HHF-800/1000 | HHF-1300/1600 | HHF-1600HL | HHF-2200HL |
| TSC | WF-400 | WF-450 | WF-700 | WF-1000 | WF-1600 |
| EMSCO | F-350/500 | F-650 | F-800/1000 | FB1000 | FB1300/1600 |
| F-1300 | F-1600 | DB-550 | D-300 | D-700 | |
| NATIONAL | 8-P-80 | 9-P-100 | 10-P-130 | 12-P-160 | 14-P-220 |
| OILWELL | A-600-PT | A-850-PT | A-1100-PT | A-1400-PT | A-1700-PT |
| IDECO | T-500 | T-800 | T-1000 | T-1300 | T-1600 |
| WIRTH | TPK-1000 | TPK-1300 | TPK-1600 | TPK-2000 | TPK-220 |
| ELLIS WILLIAMS | E-447 | E-2200 | W446 | W440 | |
| GARDNER DENVER | PZ-7 | PZ-8/9 | PZ-10/11 | PZ-L | PA-8 |
| FY-FXD | FO-FXO | FD-FXX | FG-GXG | ||
| RUSSIA PUMPS | UNBT 950 | UNB 600 | UNBT 1180L | UNBT 650 | NBT 600 |
