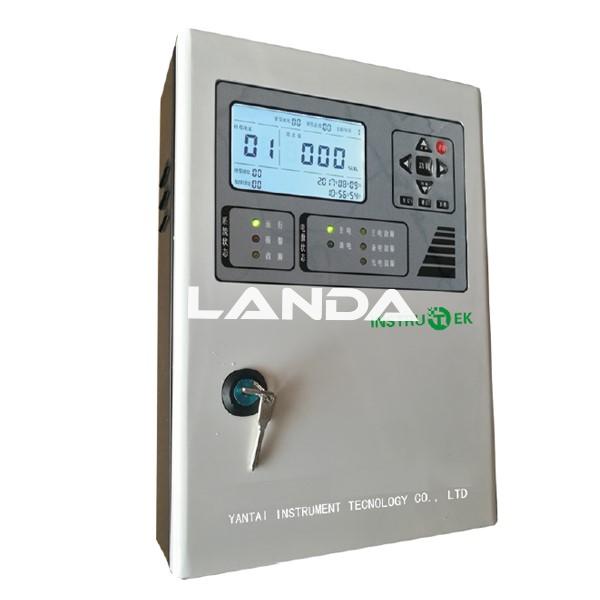

Patrol Type Model YZ600 Gas Detection Controllers
Gas Detector & Controller
Gas detection controllers/ (4-20mA Analog Inputs)
3 wire 4-20mA Analog Inputs; Patrol type
Brief Introduction
The controller receives the data from the matched detector transmitters. After high-speed processing, the gas concentration and other states from the detectors are displayed on LCD screen in real time. They are set up to trigger other safety measures, so they can open vents, start fans, close valves or even shut processes down automatically once they detect a problem. They can also set off alarms to begin an evacuation.
Features
High stability
High-speed industrial single chip microcomputer based, which is stable, reliable and does not crash.
High security
Multi-level password-protected. Different password for different level.
Visual display
LCD screen displays the status of each channel in real time.
Intelligence
●Self-checking and self-diagnosis
●Data logging, alarm and fault memory in large capacity
●Automatic back power switching
●Under-voltage protection
●Calendar is visual and settable
A variety of signal outputs:
●Autonomous 2 on-off outputs
●Digital Outputs (RS-485)
●GPRS/GSM, UDP/TCP/HTTP signal outputs can be realized by combining with modules
| Installation | Wall mounting | Connection | Multiple Lines (Patrol Type) |
| Detection Range | (0-100)% LEL/ppm/vol% | Standard | GB16808-2008 |
| Display | Large highlighted LCD display | Type of Alarm | Audible & visual alarms |
| Alarm Volume | ＞70dB | Response time | ＜30s |
| Alarm Settings | Combustible gases: Alarm 1: 25% LEL (adjustable); Alarm 2: 50% LEL(adjustable) | Type of Inputs | Analog inputs (4~20mA) |
| Toxic gases: Configured according to general or user requirements | Type of Outputs | On-off outputs | |
| Digital Outputs (RS-485), etc. | |||
| Power | AC220V±15% 50Hz | Backup Power | Optional |
| Working Environment | Temperature: -10℃~50℃ | Matching Unit | Model YZ1001/YZ300 gas detectors |
| Humidity: ＜93%RH | Computers or other upper computers |
Product Dimension
Installation Dimension
