Drilling Mud mixer/ Mud Mixing Hopper
Jet mud mixer(mud mixing hopper) is the equipment to match with the drilling solids control equipment, regularly used to mix and adjust the proportion of drilling fluid, changing the density and viscosity etc. It has a more excellent operation if being matched with shear pump, and also can be designed as double jet mud mixer as the clients’ requirements.
Mud mixing system is used in the fields of oil exploration, horizontal directional drilling, coal bed methane exploration, and shale gas development etc. Finemade mud mixer is scientifically designed to be the optimal solution for mixing of both mud bulk material and mud additive chemicals into the drilling fluid.
Types

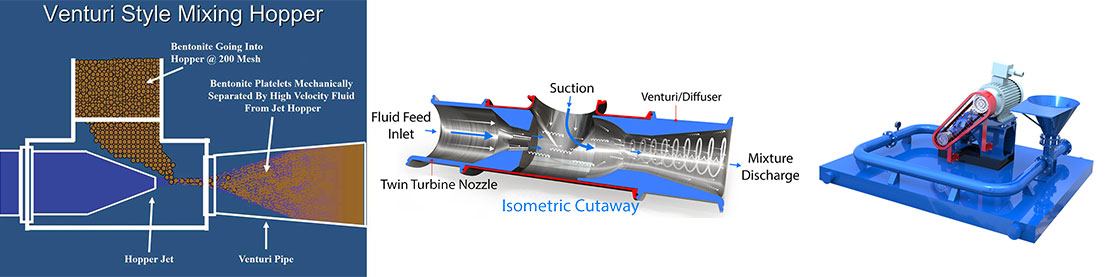

√Venturi type drilling mud mixing hopper
√Vortex type mud mixing hopper
Features
●The mud mixing efficiency is five times higher than the ordinary mud mixing device
●Reduces labor cost for five times, improving the production efficiency
●Possesses the functions of both mud mixing and mud storage
●Complete “dust-free” mixing of materials from surge tank and sack slitting machine
●High mixing capacity
●Able to handle high back-pressure
●Economical, simple, robust, reliable and wear-resistant
●Easily interchangeable jet nozzle
●Meets all relevant offshore requirements regarding health, safety and environment
●Built with materials and surface protections to withstand rough offshore environments
●Field-proven technology
Technical Data
Jet Mud Mixing Hopper Unit Technical data
| Model | Capacity(m3/h) | Pressure (Mpa) | Motor (Kw) | Inlet (Inch) | Outlet (Inch) | Weight (Kg) | Dimension L×W×H(mm) |
| SLH-750B | 320(1408GPM) | 0.25~0.4 | 75(100HP) | 8 | 6 | 1785 | 2200×1840×1150 |
| SLH-550B | 272(1200GPM) | 55(75HP) | 8 | 6 | 1675 | 2200×1840×1100 | |
| SLH-450B | 200(880GPM) | 45(60HP) | 6 | 6 | 1475 | 2200×1840×1135 | |
| SLH-370B | 150(660GPM) | 37(50HP) | 6 | 6 | 1460 | 2200×1840×1135 | |
| SLH-300B | 120(528GPM) | 30(40HP) | 5 | 6 | 1380 | 2200×1840×1100 | |
| SLH-220B | 90(400GPM) | 22(30HP) | 5 | 4 | 1167 | 1850×1540×1000 | |
| SLH-185B | 65(286GPM) | 18.5(25HP) | 4 | 4 | 1147 | 1850×1540×1030 | |
| SLH-150B | 55(242GPM) | 15(20HP) | 4 | 4 | 970 | ||
| SLH-110B | 45(200GPM) | 11(15HP) | 4 | 4 | 950 |
Mud Mixing Hopper Technical data
| Model | Pressure | Capacity | Nozzle | Inlet | Outlet | Weight | Dimension （L×W×H） |
| SLDSB | 0.25~0.4Mpa | 500-1500 GPM | 40mm | 6 Inch | 6 Inch | 174Kg | 1100×680×949mm |
| （113-340m3/h） | |||||||
| SLDMB | 200-500 GPM | 20mm | 4 Inch | 4 Inch | 113Kg | 850×570×851mm | |
| (45-113m3/h) |
