Drilling Mud Tank Agitator/ Drilling Fluid Solids Control

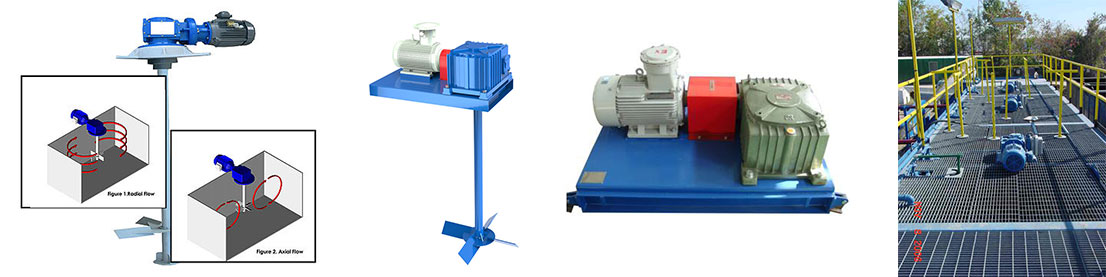

Drilling mud agitator is a device mounted on mud tank for agitating the drilling mud to prevent the drilled cuttings and fine solids from sedimentation. Finemade offers a variety of motor and impeller sizes to fit specific tank configurations. Nearly every large compartment of mud mixing and storage tank should be equipped with mud agitators to maintain the proper properties of drilling mud that will pump back to the borehole.The oilfield mud tank agitator is configured with an explosion-proof motor, reduction gearbox, impeller, and shaft with assembly bushings. Canted blade impeller are commonly used.

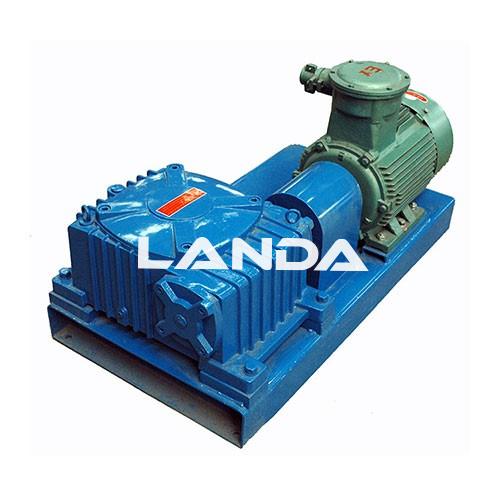

Landa mud agitators include an explosion-proof, “C” faced motor, reduction gearbox, impeller, and shaft with assembly bushings. Motors range from 5 to 30 HP and may be supplied in several power configurations.
These quiet, vibration-free agitators come in vertical or horizontal styles.
Features
●Famous brand motor and gearbox.
●FAG, SKF or other top brand bearing.
●SOG oil seal.
●Helical-bevel gearbox
●5-30 HP available
●Power available ranging from 3 to 22KW
●Sized to process 20 ppg drilling fluid
●Explosion-proof electric motor
●By unitizing the motor and gearbox, weight and space requirements are reduced
●Compact and small footprint
●Customized configuration is available
Technical Data
| Model | Motor (Kw) | Speed (RPM) | Impeller Size (mm) | Impeller Qty (pcs) | Ratio | Weight (Kg) | Dimension(mm) |
| JBQ030D | 3 | 60/72 | 650 | 1 | 25:01:00 | 154 | 717×560×471 |
| JBQ055D | 5.5 | (50HZ/60HZ) | 850 | 1 | 280 | 892×700×597 | |
| JBQ075D | 7.5 | 950 | 1 | 287 | 980×750×608 | ||
| JBQ075DD | 800 | 2 | 297 | ||||
| JBQ110D | 11 | 1050 | 1 | 402 | 1128×840×655 | ||
| JBQ110DD | 850 | 2 | 419 | ||||
| JBQ150D | 15 | 1100 | 1 | 423 | 1158×840×655 | ||
| JBQ150DD | 950 | 2 | 441 | ||||
| JBQ185DD | 18.5 | 1050 | 2 | 746 | 1270×1000×727 | ||
| JBQ220DD | 22 | 1100 | 2 | 820 | 1270×1000×727 |
